4F 5.0mm Single Mode Armored Fibre Optic Pigtail Cable SC UPC LSZH Micro Spiral

Name: 4F 50mm Single Mode Armored Fibre Optic Pigtail Cable SC UPC LSZH Micro Spiral
Brand: ARMORED
Price: 1 USD

China 4F 5.0mm Single Mode Armored Fibre Optic Pigtail Cable SC UPC LSZH Micro Spiral wholesale

Brand Name : ARMORED

Model Number : 4F-AMD-A1-5.0-LSZH-SC/UPC-20M

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000m cable

Price : To be advised

Supply Ability : 1000pcs connector per day

Delivery Time : 2 Working Weeks

Packaging Details : Plastic bags , Carton, and Pallet. By Sea or Air shipment

Name : 4 Cores Armored Patch Cord

Diameter : 5.0 MM

Jacket Material : LSZH

Color : Black

Cable length : 20M

Fan-out length : 50cm

Armoured Tube : Stainless Steel

Application : FTTH, Datacenter,

Flame Rating : IEC60332-1-2, IEC60332-3-24, Dca，OFCR

Feature : Rodent Resistant

Contact Now

4F 5.0mm SM Armored Pigtail SC/UPC Connectors Black LSZH Micro Spiral Armored Tube Rodent Resistant

4F 5.0mm SM Armored Pigtail SC/UPC Connectors Black LSZH Micro Spiral Armored Tube Rodent Resistant

Flame Resistant, Armored Patch Jumper

Parameter

Item	Pigtail with armored fan-out cable
Fiber	G657A, OM2, etc
Cable diameter	5.0 MM
Cable jacket	Black LSZH
Length	10M, 30M, 50M, 70M,.etc.
Insert loss	＜ 0.30dB
Return loss	≥50dB (UPC), ≥25dB (MM)
Temperature	-40℃~80℃
Fan-out cable	Legnth: 50cm, or customized.
Cable Grade	IEC60332-1-2, or IEC60332-3-24, or other standard. Comply with ROHS

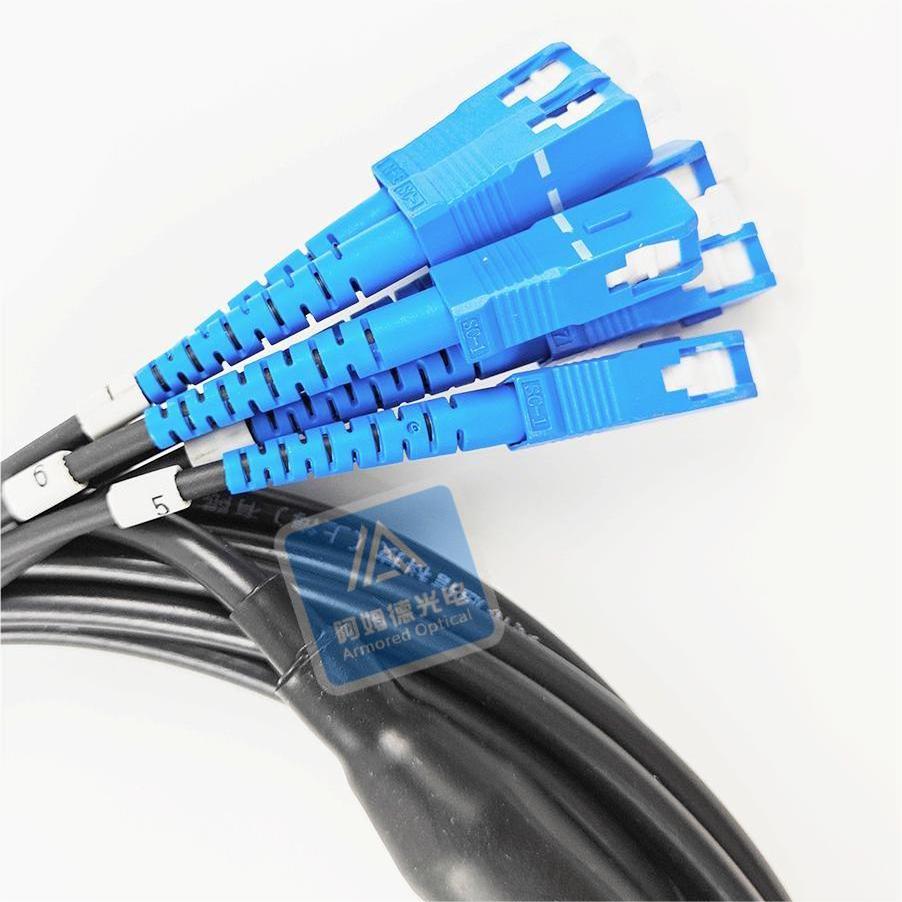

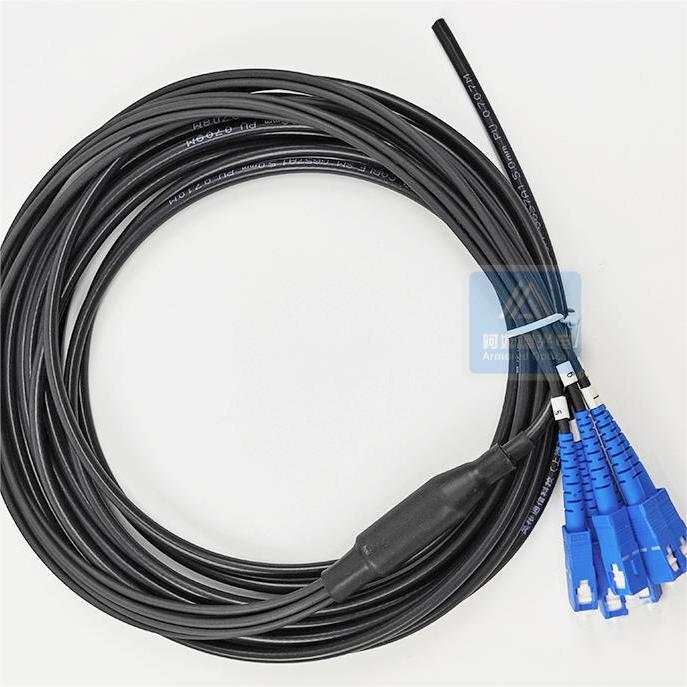

Cable Show

4F 5.0mm Single Mode Armored Fibre Optic Pigtail Cable SC UPC LSZH Micro Spiral

Service

100% testing before shipment.
We’re factory, good prices can be provided.
Our products can be customized according to customers’ requirement.

Applications

* Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH armored fiber optical cable

* Used in the open field, connections between optical equipment.

* Widely used in FTTH access network

* Telecommunication Network

* CCTV Network

* Data communications Network

* Local Area Network

* Optical pig-tails and Patch cord assembly

* Optical devices and equipment
