4F Single Mode Armored Patch Cord 50m 5mm Black LSZH FTTH Rodent Resistant FC Connector
4 Cores Armored Patch Cord 50m 5mm Black LSZH FTTH Rodent Resistant Flame Resistant
4F Armored Patch Jumper FC connector
l Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
l Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
l Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
l Different jacket material fit for different environments.
l UV-resistant
Parameter
| Item | Armored patch cord |
| Fiber | G657A |
| Cable diameter | 5.0MM |
| Cable jacket | LSZH |
| Length | 50M |
| Insert loss | ＜ 0.30dB |
| Return loss | ≥50dB |
| Temperature | -40℃~80℃ |
| Fan-out cable length | 50cm |
| Cable Grade | The following standard can be choosen, IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, etc. Comply with ROHS |

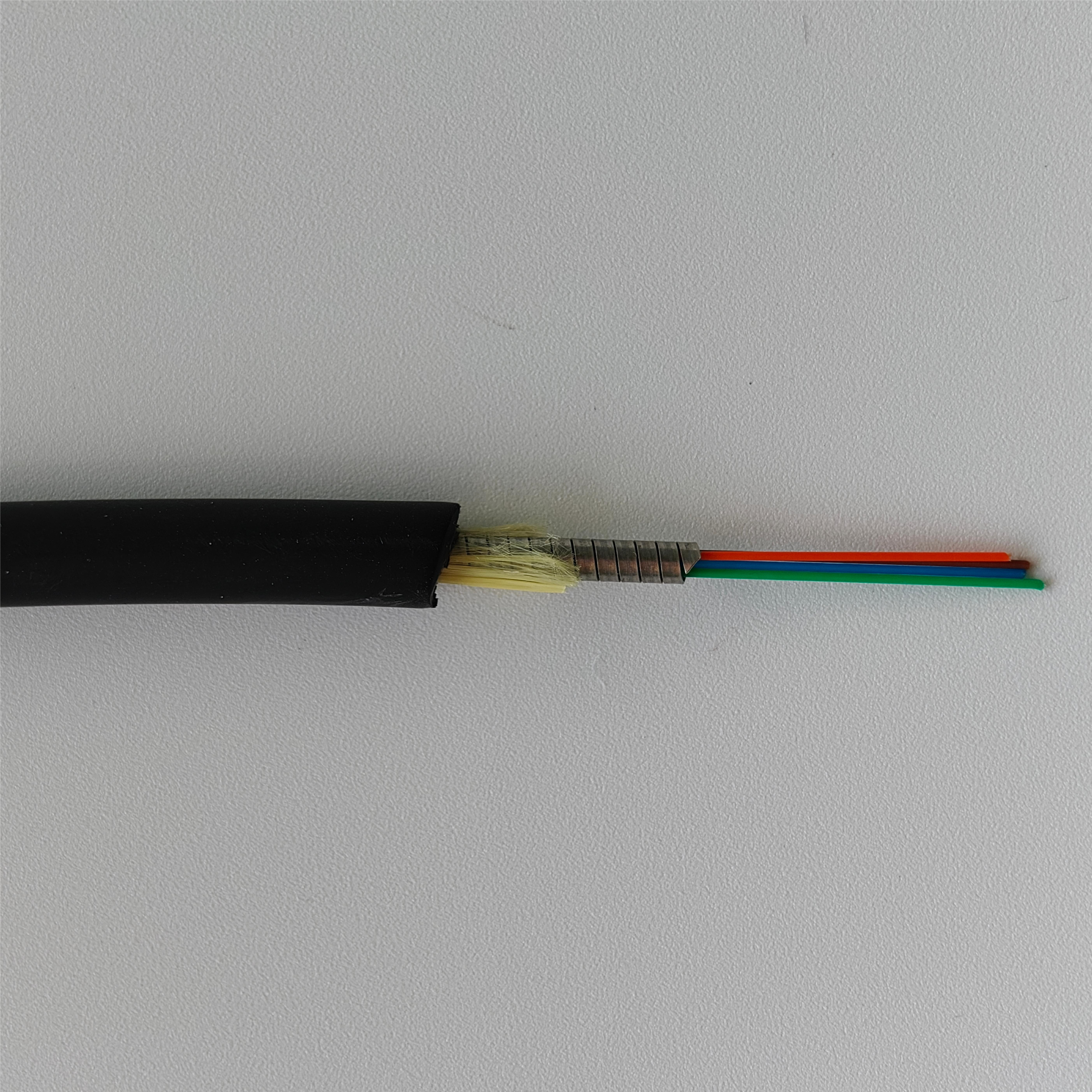

Cable show

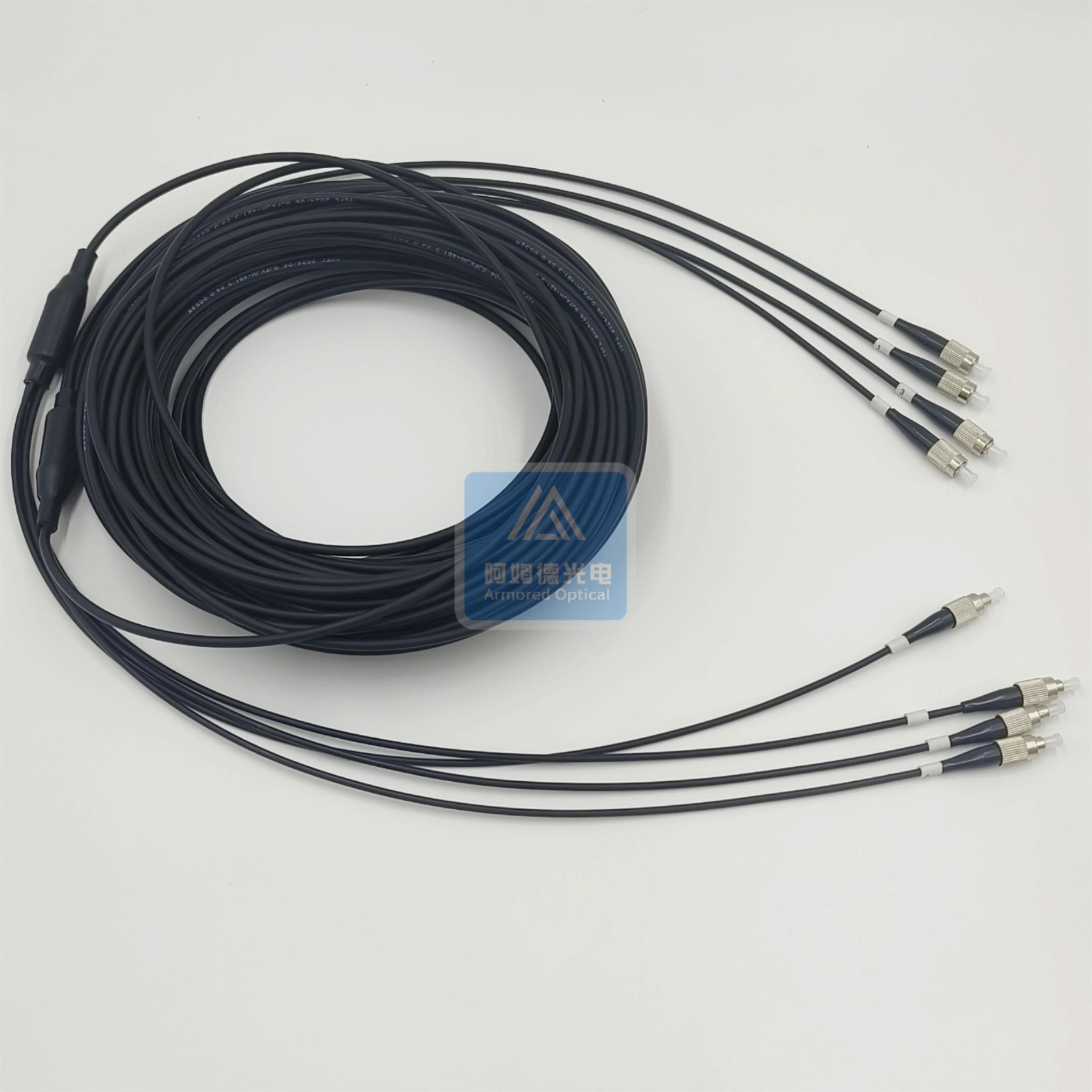

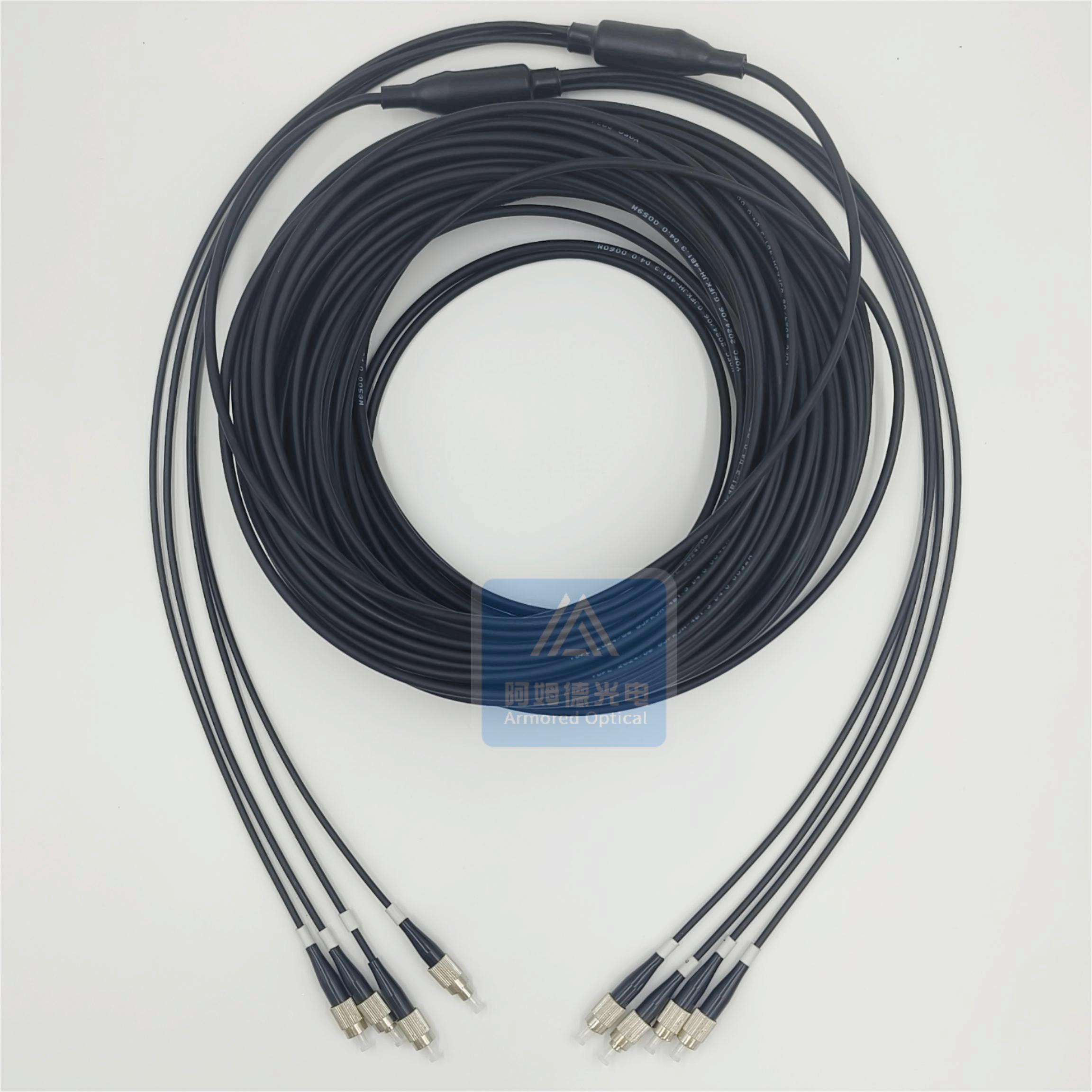

Armored Patch Cord show:
l The spiral armored fiber cable is rodent-resistant, which couldn’t be destroyed by rodent animals.
So armoured fiber cable and patch cord products has long product life.
l The maintain cost for spiral armored fiber cable will be saved.
l The spiral armored fiber cable with good tension and pressure
l The cables can be customized, eg. construct, size, color, material, printing, packing and so on.,
to meet different customers’ different requirement.
