Brand Name : JIANGSU ARMORED
Model Number : 2F-A2-3.0-PVC-SC/A-FC/U-2M
Certification : ROHS
Place of Origin : CHINA
MOQ : 1000M Cable
Price : To Be Advised
Supply Ability : 4000pcs Connector Per Da4
Delivery Time : 2 Working Weeks
Packaging Details : Plastic bags , Carton, and Pallet. By Sea or Air shipment
Name : 2 Cores Armored Patch Cord
Fiber Mode : SM G657A2
Material : PVC
Color : Grey
Cable length : 2M
Connector : SC/APC and FC/UPC
Cable Diameter : 3mm
Feature : Rodent Resistant
Flame Rating : IEC60332-1-2, OFCR, or OFCP
Application : FTTH, ODN

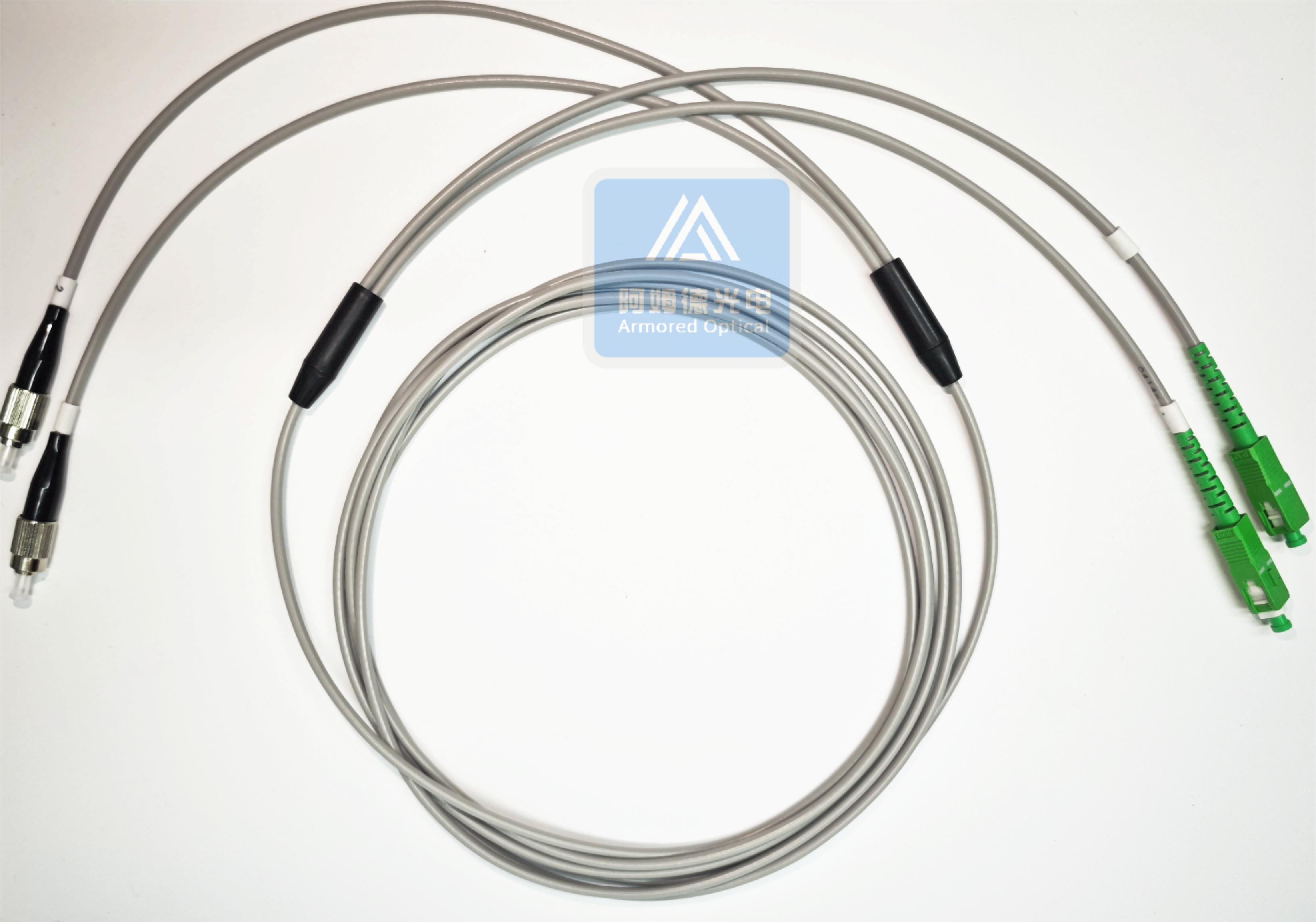

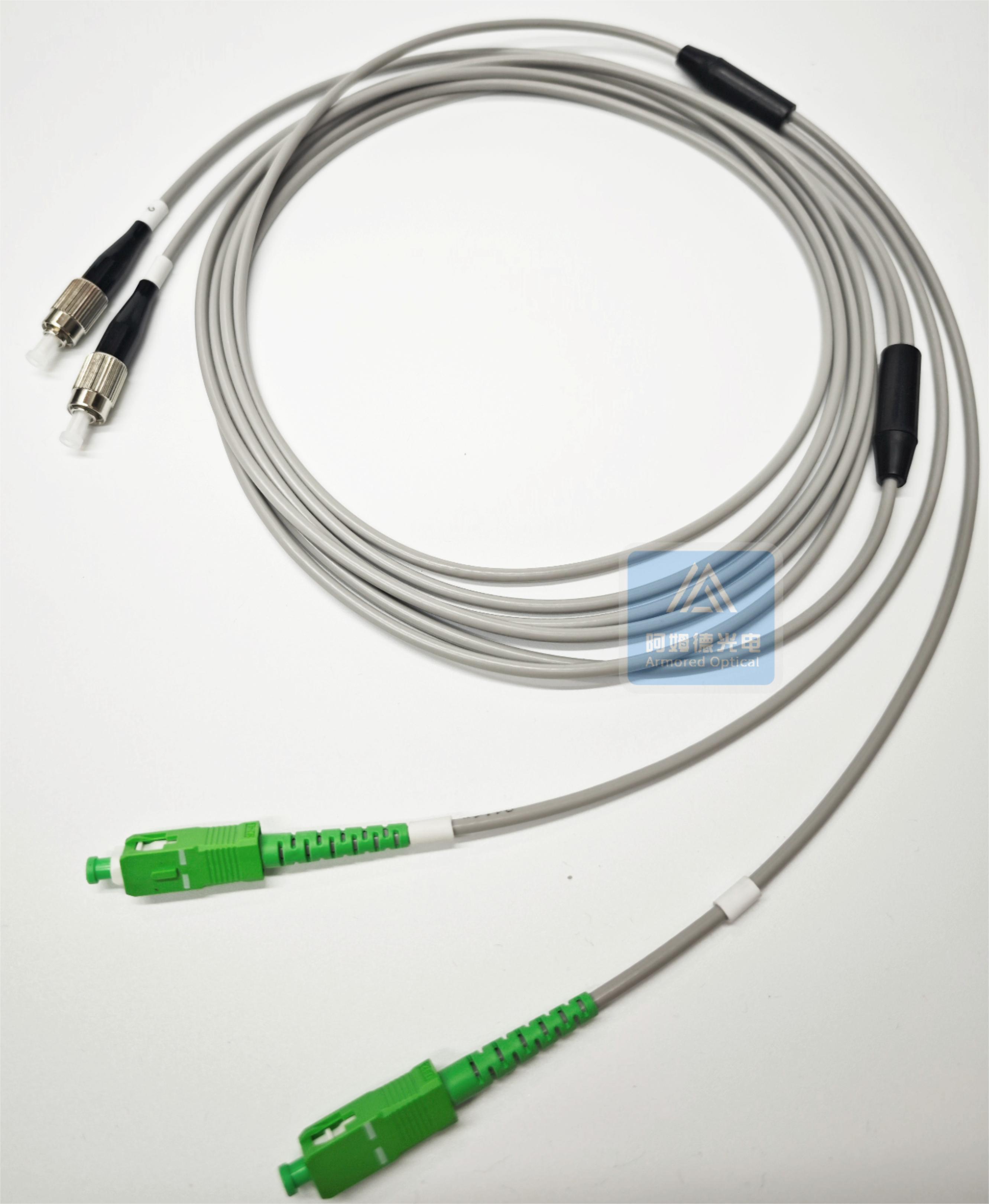

2F Armored Patch Cord 2m SC/APC and FC/UPC Connector 3.0mm Grey PVC Jacket Flame Resistant
2F Armored Patch Cord 2m SC/APC and FC/UPC Connector 3.0mm Grey PVC Jacket Flame Resistant
ODN use, FTTH, FTTR.

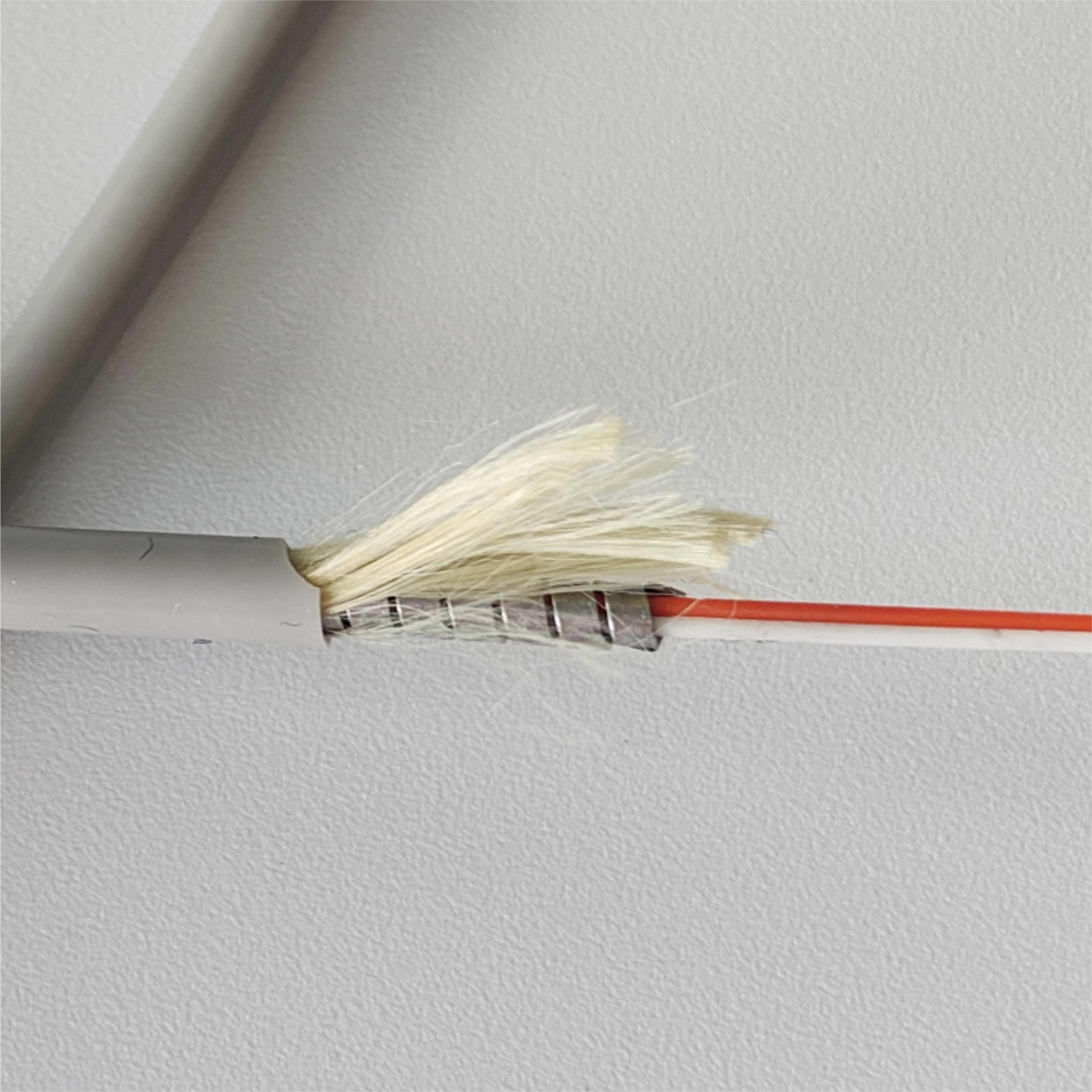

Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,
like FTTA, FTTH, FTTB, FTTR, etc..
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.
Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, the advantage are particularly obvious.
Item | Armored patch cord |
Fiber | G657A |
Cable diameter | 3.0MM |
Cable jacket | PVC |
Length | 2M |
Insert loss | < 0.30dB |
Return loss | ≥50dB (UPC), ≥60dB (APC), |
Temperature | PVC: -20℃~70℃, LSZH: -40℃~80℃ |
Fan-out cable | Legnth: 0.3m-0.5m,OD3.0mm diameter |
Cable Grade
| IEC60332-1-2, OFCR, OFCP, etc. Comply with ROHS |
Advantage
Service
![]() |
2F Armored Patch Cord 2m SC APC FC UPC Connector 3.0mm Grey PVC Jacket Images |
